  LM-2340W
23 Inch FSI LM-2340W



Alternative Views:


Need something faster? Consider the newer BM230 instead. Same price, same panel, more features and capabilities!
Price: $2,995.00

Availability: Call for availability
Product Code: LM-2340W


Battery Plate*:

Battery plates provide power to the monitor via D-Tap connection. See here for details: Battery Plate

Special Order
Description Technical Specs More Info...

The Flanders Scientific LM-2340W is a calibrated 23” Multi-Format broadcast monitor with 3G/HD/SD-SDI, Component, Composite, & DVI-I Inputs. This unit features full 12-bit video processing and an 8-bit panel capable of reproducing over 16.7 million colors on screen. The 23” LM-2340W and its slightly smaller 21.5” sibling the LM-2140W were purpose built as full-featured lower cost monitoring solutions for environments that do not require quite the same level of performance and color fidelity of FSI’s flagship LM-2461W reference monitor. While not equipped with the same advanced Color Fidelity Engine found on the LM-2461W these units are still fully calibrated and will offer sufficient color accuracy for general color judgment in a wide array of professional monitoring applications. The LM-2340W is equipped with a native HD 1920x1080 resolution LCD panel and features a power efficient LED backlight offering long-term calibration stability.

This unit features many broadcast monitor basics like a Blue Only Mode, Monochrome Mode, Markers, Safety Areas, H/V Delay, and Tally Lights. Like all Flanders Scientific monitors the LM-2340W also comes standard with advanced features like 12 Selectable Scopes, Focus Assist, Time Code Display, Freeze Frame Picture and Picture, Audio Disembedding, Audio Level Meters, Artifact Free Pixel Zoom, Adjustable Exposure Check, On-screen Alarms, and Advanced Pixel Level Measurement. Best of all these ancillary features work across all inputs and formats ensuring that you get the most out of your monitor regardless of the source.

The LM-2340W is not only a good general editing monitor, but it is also well suited as a field monitor thanks to its durable, yet lightweight, aluminum frame and ultra-efficient LED backlight. At just 10 lbs (12.5 lbs with stand) the LM-2340W is not only lighter than most comparably sized professional broadcast monitors, but even weighs several pounds less than the majority of 17" broadcast monitors on the market. Additionally, the LM-2340W consumes a mere 30 Watts of power making it one of the most efficient full-featured native 1920x1080 resolution broadcast monitors available at any size.

Thanks to its standard 100mm VESA mounting holes the LM-2340W can also be rack mounted using our optional VESA Rack Mount Kit (RMK-VESA) or mounted on any variety of other optional VESA mount accessories such as our popular VESA to Light Stand Adapter (MM20) for onset applications or optional articulating arm wall mount (MM-ART-730).

The LM-2340W supports virtually any signal format from NTSC/PAL to HD and 2K. Additionally, the LM-2340W features the same advanced video processing hardware found on our top of the line monitors ensuring that practically any broadcast standard signal, including interlaced and PsF formats, will be displayed accurately. Even advanced 12-bit, 4:4:4, and XYZ signal formats are all supported over the 3Gbps SDI (SMPTE 425M-AB) inputs. With support of both Level A and Level B 3Gbps SDI the LM-2340W is compatible with virtually all 3Gbps SDI sources and provides many advanced viewing modes for multiplexed (2 x SMPTE 292M) Level B signals as explained here.

For advanced color grading environments or other very color-critical workflows FSI highly recommends our top of the line LM-2461W reference grade monitor, but for virtually every other general video monitoring application the LM-2340W, and the slightly smaller LM-2140W, are an ideal choice at an unbeatable price. At just $2,995 with a native 1920x1080 resolution panel, standard 3Gbps SDI, and an advanced feature set rivaling units costing 10 times as much the LM-2340W sets a new standard for value in professional video monitoring.
LM-2340W Overview Video
Features
  • Native 1920x1080 Resolution HD LCD Panel
  • 12 Bit Video Processing, 8 Bit LCD Panel (16.7 Million Colors)
  • Ultra-Low Power Consumption: 30W@120nit, 40W@250nit
  • Lightweight: 10 lbs (4.5 kg) without Stand, 12.5 lbs (5.7 kg) with Stand
  • Standard 3Gbps SDI Inputs Included for Support of Advanced SMPTE 425M-AB Signals
  • 4:4:4 YCbCr, RGB, & XYZ Signal Support
  • Timecode Display (VITC 1, VITC2, LTC)
  • Automatic On-Screeen Indication of Source Frame-rate & Resolution (toggle on, off, or 5 second display)
  • DSLR Zoom for Full Screen Scaling of DSLR Sources
  • On-Screen Alarms (IRE Threshold, RGB Alarms, Loss of Signal, Audio Mute, and more)
  • Adjustable Focus Assist (Focus Meter and Focus Highlight in Red)
  • Wide Variety of Standard Markers & Safety Areas
  • User Adjustable Custom Marker Feature
  • Pixel Zoom Feature - Adjustable Artifact-Free Zoom On Any Portion of HD signal
  • CX Scale (video example): Full Screen and centered scaling of Codex ARRIRAW Recorder output
  • Active Video Boundary Marker
  • H/V Delay
  • Blue Only Mode
  • Monochrome Mode
  • HD Anamorphic De-Squeeze (1.3x, 2.0x, 2.0xMag)
  • AFD Reader
  • Overscan/1:1 scan
  • Freeze Frame Picture by Picture (Sub Window)
  • 12 Quickly Selectable Scopes (Display Up to 2 at the Same Time)
    • Luminance Waveform with Adjustable Intensity
    • Vector Scope with Adjustable Intensity and Gain Expansion
    • Hue Vector Scope with Adjustable Reference Vector
    • Color Coded RGB Parade with Adjustable Intensity
    • Color Coded GBR Parade with Adjustable Intensity
    • RGB Overlay with Adjustable Intensity
    • Column Scope Showing Min/Max YRGB Range
    • Histogram, Color Histogram, & RGB Histogram Scopes
    • YCbCr Scope with Adjustable Intensity
    • YCbCr Overlay Scope with Adjustable Intensity
    • Audio Phase Meter (Select Any Stereo Pair of Embedded Audio Channels)
  • Audio Disembedding to Built-In Speakers or Audio Output
  • 16 Channel Audio Level Meters
  • Color Temperature Selection
  • Gamma Selection (1.0~2.8) as well as C-Log and S-Log monitoring modes
  • SD Aspect Ratio Selection (Anamorphic/4:3)
  • Advanced Pixel Level Measurement Feature
  • 3D Signal Analysis Modes for multiplexed Level B 3Gbps SDI signals
    • Left Eye Only
    • Right Eye Only
    • Picture and Picture
    • Horizontal Split with Adjustable Split Position
    • Vertical Split with Adjustable Split Position,
    • 3D Disparity
    • 3D Line by Line
    • 3D Checkerboard with Adjustable Checkerboard Size
    • *The LM-2340W is not a 3D display, these modes are strictly diagnostic modes for 3D signal analysis.
  • Exposure Level Indication with LUM Coloring feature
  • Remotely Controlled Tally Lights (Red/Green/Amber)
  • Camera Record Status Indication triggered by Camera SDI Flag
  • AC (100~240V) and DC (12V 4PIN XLR) Power Connectors
  • Durable Diecast Aluminum Frame

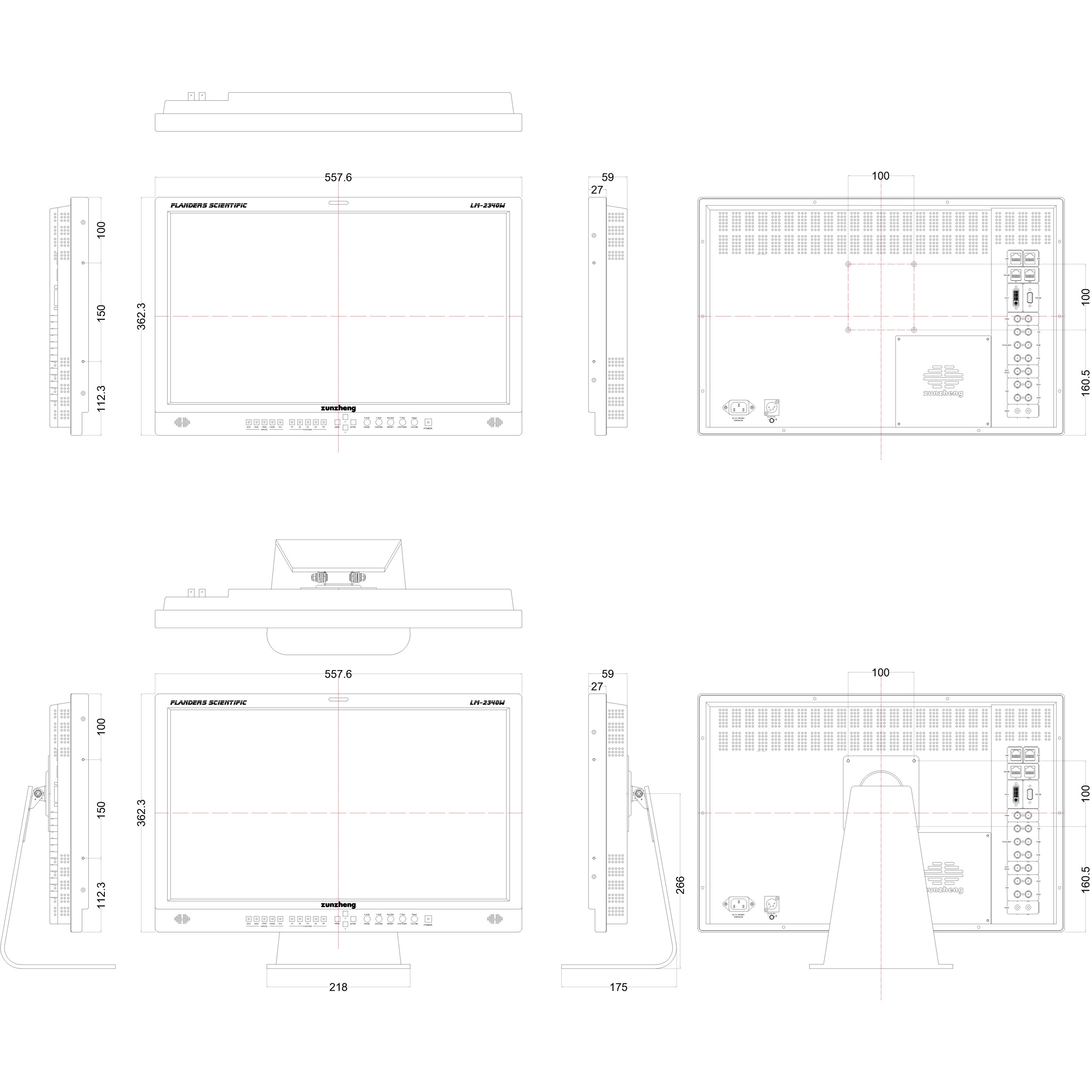

  • Chassis Width: 22" Height: 14.5"
The following Scope Modes are available on all inputs (any 2 may be viewed simultaneously):

*Audio Phase Meter only on HD/SD-SDI sources.

Audio Level Meter Feature:
Allows up to 16 channels of audio to be monitored on screen. These will be displayed at the top of the screen or can be viewed at the bottom of the screen simultaneously with the Waveform/Vector Scope feature.

Top


Bottom
