FSI 7 Inch HD Broadcast Monitor
Alternative Views:

Price: $1,995.00

Availability: No longer available.
Product Code: LM-0750W

Input/Output Configuration:

Portable or Rack Mount*:
Portable with Gold Mount Battery Plate
Portable with V-Mount Battery Plate
Rack Mount Kit (No Battery Plate)

No longer available.
Description Technical Specs More Info...
The FSI LM-0750W is a 7" Multi-Format LCD monitor with HD/SD-SDI, Component (YPbPr/RGB), Composite, DVI-I, and Optional 3Gbps SDI Inputs. This unit is packed with many common broadcast monitor features like Blue Only, MonoChrome, Markers, Safety Areas, & Tally Lights and like all FSI monitors it also comes standard with advanced 12 Mode Scopes, Focus Assist, Timecode Display, LUM Coloring Exposure Check, Freeze Frame Picture and Picture, Audio Disembedding, and Audio Level Meter features. Additionally, this monitor comes with a feature exclusive to the LM-0750W, and OSC viewing mode. This unique viewing mode allows for simultaneous monitoring of the live video feed, an audio phase meter with 2 channel audio level meters, and any 2 user selectable scopes all at the same time across four quadrants of the display.

OSC Viewing Mode:

The LM-0750W is ready for virtually any application with instantly adjustable Gamma & Color Temperature Presets and true Multi-Format support ranging from NTSC/PAL to HD and 2K. Additionally, the LM-0750W can be ordered with optional 3Gbps SDI Inputs for support of 1080p50/60 or 1080i 4:4:4 signals over a single Serial Digital Interface.

The LM-0750W comes with a 12VDC 4 pin XLR power connection as well as your choice of AB Gold Mount or V-Mount battery plates.

The LM-0750W is compatible with many popular HDSLR cameras that have HDMI or mini-HDMI outputs. Simply use the LM-0750W in conjunction with a HDMI to DVI or mini-HDMI to DVI cable to easily pair it up with your DSLR.

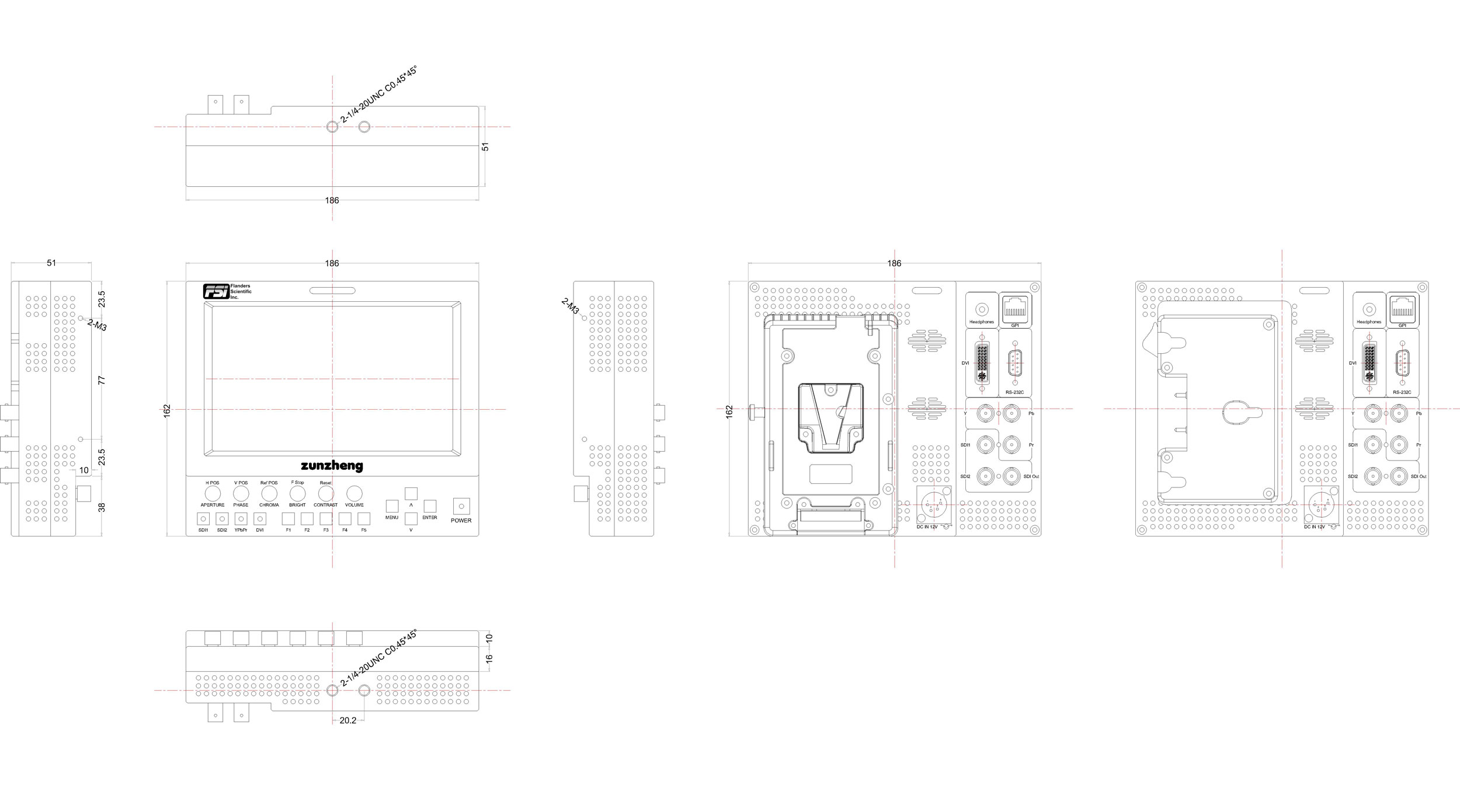

The LM-0750W can be rack mounted (4RU) in a single or dual mount configuration. Additionally, the LM-0750W comes with standard 1/4-20 threaded mounts top and bottom for camera top mounting. Perfect as a compact field or studio monitor the LM-0750W packs all of the features of the larger FSI monitors into a compact, lightweight, yet durable design.
  • Timecode Display (VITC 1, VITC2, LTC)
  • Automatic Source Resolution & Frame Rate ID: toggle on, off, or temporary 5 second display when format change is detected or input button is pressed
  • DSLR Zoom feature for full screen scaling of DSLR video source at both 480 and 1080 resolutions
  • On-Screen Alarms (IRE Threshold, RGB Alarms, Loss of Signal, Audio Mute, and more)
  • Front and Rear (talent) Tally Lights
  • Adjustable Focus Assist (Focus Meter and Focus Highlight in Red)
  • Wide Variety of Standard Markers & Safety Areas
  • Pixel Zoom Feature - High Quality Adjustable Zoom on any portion of HD signal
  • CX Scale (video example): Full Screen and centered scaling of Codex ARRIRAW Recorder output
  • User Adjustable Custom Marker Feature
  • Active Video Boundary Marker
  • H/V Delay
  • Blue Only
  • Monochrome
  • HD Anamorphic De-Squeeze (1.3x, 2.0x, 2.0xMag)
  • AFD Reader
  • Overscan/1:1 scan
  • Freeze Frame Picture by Picture
  • 12 Mode Scopes (Luminance Waveform, Vector Scope, Hue Vector Scope, RGB Parade, GBR Parade, RGB Overlay, YRGB Peak Column, Histogram, Color Histogram, RGB Histogram, YCbCr, YCbCr Overlay, & Audio Phase Meter)
  • Audio Disembedding
  • Audio Level Meters
  • Color Temperature Selection
  • Gamma Selection (1.0~2.8) as well as C-Log and S-Log monitoring modes
  • SD Aspect Ratio Selection (Anamorphic/4:3)
  • Advanced Measurement Feature
  • OSC Viewing Mode, Exclusive to LM-0750W. Simultaneous quad view of any 2 scopes, live video feed, and audio phase meter with 2 channel audio level meters.
  • Exposure Level Indication with LUM Coloring feature
  • Remotely Controlled Tally Lights (Red/Green/Amber)
  • DC (4 Pin XLR), Battery (V-Mount or Gold Mount), and AC (with adapter) operation
  • Aluminum Frame
The following Scope Modes are available on all inputs (any 2 may be viewed simultaneously):

*Audio Phase Meter only on HD/SD-SDI sources.

Audio Level Meter Feature:
Allows up to 16 channels of audio to be monitored on screen. These will be displayed at the top of the screen or can be viewed at the bottom of the screen simultaneously with the Waveform/Vector Scope feature.
